Introduction

挖掘矿物由两米ajor ways that is sub surface mining (Open cast) and underground mining method. In both of the methods ground water play an important role because, due to mining geological pattern of the rocks changes that leads to change in hydrology of the particular region and ultimately it leads to water pollution or change in water quality & quantity. There is no question mark that ground water is the important source for survival of agriculture, human health, energy as well as for the ecosystem on entire planate. The stress on ground water scarcity, decline of water quality is being increased due to overexploitation and mismanagement of the generated waste water and solid waste in industrial area. Reported that prolonged mining activities have degrade water quality and decrease recharging capacity of the area¹cited that drinking water must be free from microorganisms and should have appropriate chemical concentrations imbalance in both of the properties cause health impacts²

In this article the objective of the study is to identify the changes and extent of contamination in ground water quality in and around the mining activities of the of the study area. The study area is facing serious threat on ground water quality degradation as the entire district have ample number of small-scale mining unit running in unsystematic manner. Water samples were collected from nearby areas of mining unit and as per the samples collected and analysed the overall water quality of the entire district is suitable for drinking purpose only after adequate treatment. As per the ground water atlas book 2013 all 7 blocks of Rajsamand district falls in over exploited zone it will cause serious water scarcity in near future.

Study Area

The Rajasamand district is situated in southern part of the Rajasthan. It shares the North boundary withAjmer and East with Bhilwara districts, South by Udaipur, in west it is bounded by Pali. It stretches between 23⁰31’ 49.64 to 24⁰30’ 16.57 North latitude and 74⁰13’ 19.93 to 74⁰58’ 59.58 East Longitude the general elevation between 500 to 625 m above mean sea level.

Figure 1: Location Map of the Rajsamand District. Click here to view Figure

Material and Method

Samples for ground water were collected from open well, tube well, hand pump for physio-chemical analysis during post monsoon-2019. During sampling of the representative water samples IS:3025 standard method was followedand collected samples were transported to the GMEC International laboratory and analysed as per standard methods for variousphysio-chemical parameters like- Electrical Conductivity, pH, Total Alkalinity, Total Dissolved Solids, Sodium, Potassium, Calcium, Magnesium, Chloride, Sulphate, Carbonate, Bicarbonate, Nitrate, Fluoride, Total Hardness.

Result and Discussion

Total 70 Samples were Collected from different blocks (Amet, Bhim, Deogarh, Khamnor, Kumbhalgarh, Railmagra, Rajsamand) for the analysis of basic parameters like Electrical Conductivity, pH, Total Alkalinity, Total Dissolved Solids, Sodium, Potassium, Calcium, Magnesium, Chloride, Sulphate, Carbonate, Bicarbonate, Nitrate, Fluoride, and Total Hardness. Result given in table no 1, all the parameters are manifested in mg/l, pH has no Unit and electrical conductivity (EC) given in Micro Siemens per centimetre.

Table 1: Physico-Chemical Characterization of Ground Water.

Parameters	Unit		Amet				Bhim				Deogarh
			Minim-al	Maxima-l		Mean	Minima-l		Maxim-al	Mean	Minima-l		Maxim-al	Mean
Conductivity	µS/cm		580	4100		2340	500		9600	5050	360		3350	1855
pH	N/A		7.6	8.6		8.10	7.9		8.9	8.40	7.9		9	8.45
TDS	mg/l		313	2300		1307	286		5463	2875	179		1896	1038
TH	mg/l		130	1195		663	130		2260	1195	95		625	360
Na+1	mg/l		49	469		259	43		1139	591	32		467	249.5
K+1	mg/l		4	196		100.00	7		74	40.50	4		383	193.50
Ca+2	mg/l		22	178		100	36		381	209	16		132	74
Mg+2	mg/l		11	182		97	10		319	165	13		72	43
Cl-1	mg/l		89	979		534	53		3085	1569	14		723	369
SO4-2	mg/l		10	432		221	19		394	207	5		303	154
CO3-2	mg/l		0	30		15.0	0		99	49.5	0		120	60.0
HCO3-1	mg/l		183	464		324	73		415	244	159		543	351
NO3-1	mg/l		0	129		64.5	10		112	61	6		175	90.5
F	mg/l		0.82	2.98		1.90	0.42		3.94	2.18	0.2		5.65	2.93
Parameters	Unit		Khamnor				Kumbhalgarh				Railmagra
			Minim-al	Maxim-al		Mea-n	Minim-al		Maximal	Mean	Minimal		Maximal	Mean
EC	µS/cm		520	7080		3800	620		5650	3135	1080		8000	4540
pH	N/A		7.6	8.4		8.00	7.8		8.4	8.10	7.7		9	8.35
TDS	mg/l		275	3946		2111	317		3084	1701	555		4845	2700
TH	mg/l		120	1905		1013	70		1580	825	185		1340	763
Na+1	mg/l		58	731		394.5	40		559	299.5	90		1316	703
K+1	mg/l		0	121		60.50	4		31	17.50	5		90	47.50
Ca+2	mg/l		16	405		211	6		136	71	20		224	122
Mg+2	mg/l		19	218		119	13		302	158	27		207	117
Cl-1	mg/l		78	2184		1131	64		1652	858	71		1744	908
SO4-2	mg/l		10	298		154	0		250	125	48		1249	649
CO3-2	mg/l		0	15		7.5	0		24	12.0	0		78	39.0
HCO3-1	mg/l		116	384		250	134		391	263	177		586	382
NO3-1	mg/l		4	149		76.5	0		63	31.5	25		175	99.5
F	mg/l		0.36	1.52		0.94	0.3		4.61	2.46	0.67		3.76	2.22
Parameters		Unit			Rajsamand
					Minimal			Maximal				Mean
EC		µS/cm			1470			7000				4235
pH		N/A			7.6			8.8				8.20
TDS		mg/l			805			4083				2444
TH		mg/l			225			1550				888
Na+1		mg/l			69			888				478.5
K+1		mg/l			6			360				183.00
Ca+2		mg/l			18			220				119
Mg+2		mg/l			44			243				144
Cl-1		mg/l			170			1773				972
SO4-2		mg/l			62			1239				651
CO3-2		mg/l			0			120				60.0
HCO3-1		mg/l			153			683				418
NO3-1		mg/l			0			218				109
F		mg/l			0.06			2.61				1.34

The results were compared with drinking water standards for the parameters like - Conductivity, pH, , Dissolved Solids-Total, Total Alkalinity Sodium, Potassium, Calcium, Magnesium, Chloride, Sulphate, Carbonate, Bicarbonate, Nitrate, Fluoride, and Total Hardness describe in table 2.

Table 2: Comparison of Ground Water Quality Data with Drinking Water Standard.

Sr. No.	water Quality parameters and unit	WHO International Standards 2017 guidelines		BIS-10500:2012		Sample Range in Study Area
		Desirable Limit	Maximum Permissible Limit	Desirable Limit	Maximum Permissible Limit
	EC (µS/mg)	1400	-	-	-	360-9600
	pH	6.5	8.5	6.5	8.5	07.6- 9.0
	TDS (mg/l)	500	1000	500	2000	179 -5463
	TH (mg/l)	100	500	200	600	70-2260
	Na+1 (mg/l)	-	200	-	-	32-1316
	K+1 (mg/l)	-	12	-	-	00-383
	Ca+2 (mg/l)	75	200	75	200	6.0 - 405
	Mg + 2(毫克/升)	50	150	30	100	10.0 -319
	Cl-1 (mg/l)	200	600	250	100	14-3085
	SO4-2 (mg/l)	200	400	200	400	62-1249
	CO3-2 (mg/l)	-	-	-	-	00-120
	HCO3-1 (mg/l)	-	-	-	-	73-683
	NO3-1(mg/l)	-	50	45	No Relaxations	00-218
	F (mg/l)	0.5	1.0	1.0	1,5	0.82-5.65

Electrical Conductivity

As per the result obtained value of conductivity ranges minimum- 360 µS/cm (Anjana village of Deogarh tehsil) maximum -9600 µS/cm in Jujupura village of Bhimtehsil. Almost 90% of the samples exceeds the desirable limit of WHO drinking water standards. Higher concentration of acid, base and salts will be the result as higher EC³.Higher values of EC also indicate presence of dissolved inorganic substances in ionized form at higher level⁴.

Figure 2: Graphical Representation of EC (Mean Values) Observed in GW of Study Area. Click here to view Figure

pH

As per result of collected samples the pH value ranges between 7.6 pH atPasaoond Village ofRajsamandtehsil to 9.0 pH at Kuraj Village in Railmagaratehsil standard limit of pH for drinking water is 6.5 to 8.5 (BIS 10500 -2012). 90% of the water samples are well under the prescribed limit of drinking water specification except 10% of sampling station shows higher pH values. There is no direct impact of higher pH on human health but it regulates all the biological activities in the water however “higher pH values reduce the disinfection potential of the chlorine⁵.

Figure 3: Graphical Representation of pH (Mean Values) Observed in GW of Study Area. Click here to view Figure

Total Dissolved Solid (TDS)

As shown in table-1 values of the TDS ranges between 179 mg/l at Anjanavillage samplingstation to 5463 mg/l at Jujupurasampling station with the average value of 1410 mg/l, more than 90% of the sample results found beyond the desirable limit only few sampling station were found well within the desirable limit⁶reported that highervalues of TDS in ground water is due to leaching of salt from soil. As we earlier discussed unsystematic dumping cause leaching of mineral in ground water which leads to increase in dissolved solid in ground water of the nearby vicinity. Higher values of TDS (more than 1500 PPM) cause gastrointestinal irritation^7.Earlier reported that the mean amount of TDS in groundwater samples that have been exposed to marble industrial wastes was much higher in comparison to control sample group and results compared with previous studies and found that the ground water is contaminated by marble industry waste products⁸.

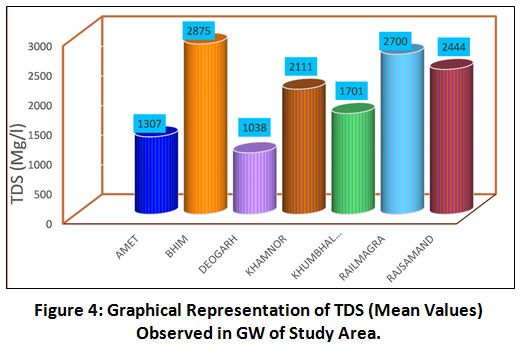

Figure 4: Graphical Representation of TDS (Mean Values) Observed in GW of Study Area. Click here to view Figure

Total Hardness

从分析结果发现,总hardness ranges between -70 mg/l to 1905 mg/l, only 18% of the sample are below the desirable limit of BIS drinking water specification rest 78 of the samples were beyond the desirable limit that is 300 to 600 mg/l for drinking water and 70% water samples are below the permissible limit at boundary line. Higher values of soluble salt of Ca, Mg, carbonate and bicarbonate ions along with chloride and sulphate governs the water quality and make it unsuitable for drinking as well as potable use due to hard nature it may be temporary hardness or permanent hardness it depends on bonding of anions with Ca and Mg the ill impact of total hardness is stone formation in kidney and heart diseases⁹.

Figure 5: Graphical Representation of TH (Mean Values) Observed in GW of Study Area. Click here to view Figure

Sodium (Na⁺¹)

As we know in the order of element abundance Sodium is on sixth number and generally it found soluble form in natural water. Natural source of sodium in water is rocks and soils, Large amounts of sodium in combination with chloride give a salty taste. High concentration of sodium in water makes unsuitable for irrigation and sodium salts also responsible for foaming in steam boilers¹⁰.The result obtained in the study area as describe in table 1 concentration of sodium in ground water samples found in the range of 32 mg/l at Anjana Village of Deogarh tehsil to 1139 mg/ l at Jujupra village of Bhimtehsil. Maximum permissible standard for sodium is prescribed 200 mg/l by WHO in drinking water. Result obtained from the analysed sample on an average 60% of the water samples found above the prescribed permissible standard. Water intake with high concentration of sodium may cause high blood pressure arteriosclerosis, oedema and hyperosmolarity⁶.

Figure 6: Graphical Representation of Sodium (Mean Values) Observed in GW of Study Area. Click here to view Figure

Potassium (K⁺¹)

According to present study concentration of potassium found lower than sodium except few locations result ranges from 0 mg/l at Nathdwara village in Khamnortehsil to 383 mg/l at Tal village in Deogarh tehsil. As per WHO maximum permissible standard limit for potassium in drinking water is 12 mg/l all the water sample exceed WHO maximum permissible standard limit in the sampling areas.

Figure 7: Graphical Representation of Potassium (Mean Values) Observed in GW of Study Area. Click here to view Figure

Calcium (Ca⁺²)

According to present study and result obtained concentration of the calcium found in the range of 6mg/l at Kelwara village to maximum 405 mg/l at Koonchal village among all the sampling station around 60% samples exceed acceptable limit of BIS drinking water standardthat is 75 mg/l⁷only 40 % sample found below the acceptance limit and 0 .5 % sample found beyond the maximum permissible standard limit of BISpotable water standardthat is200 mg/l⁷consumption of higher concentration of calcium for prolong period lead to abdominal illness and make it unfit for domestic purpose due to its encrustations and scaling nature. In the sampling area higher concentration of Ca⁺²is result of the leaching of mineral from marble mining and dumping areas in the ground water.

Figure 8: Graphical Representation of Calcium (Mean Values) Observed in GW of Study Area. Click here to view Figure

Magnesium (Mg⁺²)

Magnesium is the most abundant mineral along with calcium, according to result obtained it found in the range of 10 mg/l at Padmela village to 319 mg/l at Jujupura village in the present study 90% of the sample found beyond the desirable limit pf BIS drinking water standardthat is 30 mg/l⁷and 85 % of the water samples found below the maximum permissible standard limit of BIS drinking water standard which is 100 mg/l⁷higher concentration of the Magnesium is undesirable for domestic purpose as it is responsible for harness of the water.

Figure 9: Graphical Representation of Magnesium (Mean Values) Observed in GW of Study Area. Click here to view Figure

Chloride (Cl^-1)

Chloride plays a vital role to identifying water quality, source of chloride in ground water may be weathering of rock, sedimentary rock leaching, domesticand industrial waste as well as fertilizers in agriculture filed. In the present study chloride found in the range of 14 mg/l at Anjna village to 3085 mg/l at Jujupuravillage however mean value found 784 mg/l for all stations. Desirable limit for chloride is 200mg/l as per drinking water standard given in 2012by Bureau of Indian standard and maximum permissible limit is 600 mg/l the study conducted shows only 37 % samples are under the presumable limit around 1-2 % samples found above the maximum presumable limit of BIS standard.

Figure 10: Graphical Representation of Chloride (Mean Values) Observed in GW of Study Area. Click here to view Figure

Sulphate (SO₄^-2)

Sulphate Commonly present in mine water and in some industrial wastes, higher concentration of Sulphate has a laxative effect and combination with other ions, give a bitter taste^10.Sulphate found in natural water in anion form as per BIS: 10500,2012 presumable limits for sulphate in potable water is 200 mg/l and 400mg/l is the maximum presumable standard in the absence of alternative source. Sulphate is measure by turbidity method by using nephelometer or spectrophotometer meter by using barium chloride and conditioning regent. In the present study sulphate foundbetween 0 mg/l to 1239 mg/l, among all the samples 75 % samples found below the permissible limit and 92% samples found under the limit of maximumpresumable standard limit for potable water. At few sampling stations shows high concentration of sulphate which may create scale formation in water pipes and may be gives piquant taste in water that can have a purgative effect on human health as well on livestock.

Figure 11: Graphical Representation of Sulphate (Mean Values) Observed in GW of Study Area. Click here to view Figure

Carbonate (CO₃^-2)

碳酸盐岩的值的范围在0to 120 milligram per litre among all the sampling station and mean value found 33 mg/l for all the stations. Almost 50% samples show nil values of carbonate only two sampling points indicate more than 100 mg/l of carbonate.

图12:碳酸盐(图示Mean Values) Observed in GW of Study Area. Click here to view Figure

Bicarbonate (HCO3^-1)

The present study stated that the concentration of bicarbonate ranges from 73 mg/ l at Jujpurato 683 milligram per litre at Bhatoli in Rjsamand Tehsil while mean value of all the samples was found 122 mg/l. (Stumm and morgan 1996) studiesthat dominance of mineral dissolution is responsible for higher concentration of bicarbonate in the ground water.

Figure 13: Graphical Representation of Bicarbonate (Mean Values) Observed in GW of Study Area. Click here to view Figure

Nitrate (NO₃^-1)

As per the study conducted the range of NO3 found in the samples from 0 milligram per litre to 175 milligram per litre while permissible limit of nitrate as per BIS is 45 mg/l there is no relaxation in the standard presumable limit above 45 mg/l in potable water. 60% samples found within the permissible limit of drinking water standard and 40% samples exceed the permissible limit during study period it is already reported that higher concentration of the nitrate causes blue baby syndrome in child. Source of nitrate in ground water are fertilizer, domestic sewage and industrial waste.

Figure 14: Graphical Representation of Nitrate (Mean Values) Observed in GW of Study Area. Click here to view Figure

Fluoride (F)

In nature fluoride occurs in the form of fluorspar (fluorite), rock phosphate, triphite, phosphorite crystals climate is the major factor which control the presence of concentration of fluoride accessory minerals in the rock mineral assemblage through which the ground water is flow¹¹In the present studies fluoride found 0.06 milligram per litre to 5.65 milligram per litre while mean value of all the samples were found 1.93 milligram per litre. as per BIS presumable limit for potable water for fluoride is 1 mg/l and maximum presumable standard limit is 1.5 milligram per litre from the result obtained it is indicated that 62% samples found within the presumable limit while 38% samples exceed the acceptable limit while 90% of the samples found within the maximum presumable limit significant source of fluoride in ground water is leaching, weathering of soluble fluoride. As per earlier studied excess fluoride cause dental, skeletal and non- skeletal fluorosis.

Figure 15: Graphical Representation of Fluoride Observed in GW of Study Area. Click here to view Figure

Conclusion

Based on Sample collected and analysed it could be summarized that quality of the ground water is deteriorated due to marble mining and its allied activities in entire district, the measured criterion is Electrical Conductivity, pH, Alkalinity-Total, Dissolved Solids-Total, Sodium, Potassium, Magnesium, Calcium, Sulphate, Chloride,Carbonate, Bicarbonate, Nitrate, Fluoride, and Total Hardness. Obtained results indicated that the Contamination in ground water quality is the likely result of unsystematic dumping, of marble and processing waste and irregular and unplanned mining activities.Reported that Concentration of TDS, Hardness, alkalinity, calcium and sulphate including EC and pH has deteriorated due to the mining and its allied activities.¹²Reported that leachates can enhance the dissolution of inorganic materials or substances such as chlorides, bicarbonates, sodium, sulphate and potassium content of water.¹³reported that waste from marble industry destroying the ground water resources in the Zarqa Governorate, Jordan¹⁴

The overall water samples can only be suitable for drinking purpose after further necessary treatment. degradation in water quality will pose serious health hazard to the local people.¹⁰As per the ground water atlas book 2013 all Seven blocks of Rajsmand district falls in over exploited zone it will cause serious water scarcity in near future.

As the entire district have ample number of small-scale marble units which causing serious environmental implications therefore it should be taken in note that actions should be taken to improve the water quality and action plan should be implement to improve water quality of the marble mining areas in the Rajsamand District it is suggest that ground water recharging with rain water could minimize the concentration of minerals and leads to raise the ground water level in area.
