Aerobic Brickbat Grit Sand (Abgs) Purifier is the Alternative Solution: Tackling the Problem of Rural Wastewater Treatment In India

Priyanand Agale1*and Parag Sadgir1

Corresponding author Email:priyanandagale@gmail.com

DOI:http://dx.doi.org/10.12944/CWE.13.3.18

Rural wastewater treatment is mostly ignored in developing and undeveloped countries. The most important barrier for addressing to this problem is cost of treatment and simplified technology. Aerobic Brickbat Grit Sand(abg)净化器由四个阶段组成。废水flows gravitationally through partition walls in zigzag pattern with brick bats filter; Pebble sand filter and charcoal and grit filter which facilitate removal of contaminants from domestic wastewater. In the present study, experimental model for domestic wastewater treatment was setup in the Environmental Engineering laboratory at Government College of Engineering Aurangabad, Maharashtra. Physiochemical analysis was done in August and September of 2016 the percentage removal of contaminants results shows Biological Oxygen Demand (BOD) 92% - 87%, Chemical Oxygen Demand (COD) 93 - 89%, Total Suspended Solids( TSS) 80 - 78% and Turbidity 95 - 85%. The process is considered eco-friendly and easy to install technology for domestic wastewater treatment with use of locally available material. ABGS purifier is decentralized approach of domestic wastewater treatment. Hence ABGS as an alternative solution to tackle over the problem of rural wastewater treatment.


Aerobic Brickbat Grit Sand Biological Oxygen Demand; Chemical Oxygen Demand; pH; Total Suspended Solids; Turbidity.

Copy the following to cite this article:

Agale P, Sadgir P. Aerobic Brickbat Grit Sand (Abgs) Purifier is the Alternative Solution: Tackling the Problem of Rural Wastewater Treatment In India. Curr World Environ 2018;13(3). DOI:http://dx.doi.org/10.12944/CWE.13.3.18

Copy the following to cite this URL:

Agale P, Sadgir P. Aerobic Brickbat Grit Sand (Abgs) Purifier is the Alternative Solution: Tackling the Problem of Rural Wastewater Treatment In India. Curr World Environ 2018;13(3). Available from:http://bit.ly/2Fb6hVV


Download article (pdf)
Citation Manager
Publish History


Article Publishing History

Received: 8 May 18
Accepted: 20 August 18
Reviewed by: OrcidOrcidDr. Mohamed Elmekki Ali Hussien
Second Review by: OrcidOrcidDr. Hussein Abed Obaid Alisawi
Final Approval by: Dr. Gopal Krishan

Introduction

In 2015 not only most of the countries in world have adopted the agenda for sustainable development 2030 but also agree to take its 17 goals of the sustainable development. Even though 2.5 billion people from the world still, lack of access to developed sanitation facility.28Though world achieves sanitation target but the Sustainable development goal 3 will not satisfying it is just because of lack of wastewater treatment facility. A developing country such as India where the majority of population living in rural area. Open defecation is one of the major problems. For example the government of India introduced Central Rural Sanitation Programme (CRSP) in1986 by considering these views, CRSP program was improved in the year1999 and titled as ‘Total Sanitation Campaign (TSC). Afterwards in 2003 the government reintroducedNirmal Gram Yojana(Clean Village Campaign)26as a new programe.

印度政府提出了一个旗舰项目me in the Swachh Bharat Mission (SBM) in 2014 the aim to made open defection free villages for that construction of 110 Million toilets up to 2019 targeted. The toilet construction data shows 11.80 Millions toilets between 2008 and 2009, 12.4 Million toilets from 2009 to 2010, 12.2 Million toilets in (2010-2011), 8.8 Millions toilets from 2011 to 2012 total 4.55 Millions toilets in (2012-2013) 4.97 Millions toilets from 2013-2014, 5.85 Millions toilets were constructed in rural India in from 2014 to 2015.27

However, 8.5% of households who are residing in rural area have “underground” drainage system which is reflected as both, safest and modern system of the drainage report. The drainage arrangement in India for wastewater can be considered from the wastewater coming from households and its disposal following data shows that 36.7.% villages had pakka nail, 19 % villages had kacchi nail and 44% villages had no drainage facilitates.26

Swachhta 2016显示的状态报告villages who has drainage arrangement the waste water coming from rural households were being directly disposed off to the nala in case of 24% of villages, directly release to the pond is 44.4% case of 15.8% villages and to the river in case of 6.8 % villages in the rural part of India.27


The census of India in 2011 had reported that 106.146 Million rural households were without a drainage arrangement. This situation is very alarming as far as environment and health concern. The treatment of drainage discharge is not just a matter of concerning to wastewater treatment but it is closely relating to economics and overall development of each nation addressing to domestic wastewater generated from individual household or from village.

There are various physical, chemical and biological options for wastewater treatment such as Activated Sludge Process, Trickling Filter, Lagoon, Ozone Oxidation, Floatation, Sedimentation, Land Treatment and Wetland System. However, predominantly in developing countries, high construction cost and more importantly, high operation cost limits their application. For example Constructed Wetlands (CWs) have found to be in place for municipal wastewater treatment.8,20Several units of Natural and CW systems in North America and subsurface flow CWs in Europe are operational for wastewater treatment.21Most of the non-conventional systems such as Wetlands and land treatment have used.10,11,17

In 1993 natural soil was used to facilitate wastewater treatment in the multi-soil-layering (MSL) system.25In the countries like such as Japan and Thailand had successfully implemented the wastewater treatment project of domestic and restaurant wastewater and even polluted river water.12The system has not only depleted levels of inorganic contaminants such as nitrate, ammonium and phosphate but also organic contaminants like COD, BOD. This is also referred as a biphasic layered system which is used locally available materials such as iron particles, soil, jute or sawdust, charcoal, and zeolite or alternative materials etc.3,12In an anaerobic sheet layer of soil mixture block, nitrate is converted into nitrous oxide and nitrogen gas (denitrified) and ferric iron is depleted to the extra mobile ferrous iron, which goes out of anaerobic sheet layer of soil.25Although an adequate amount and perfect timing of aeration is important with the maintenance of an MSL system is not a complex system and the effective life span of such systems was predicated to be more than 10 years.12Since many year natural waste water systems is used on large scale which is substituted by the conventional system for the sanitation of small communities because of less electric requirement’s and low maintenance costs.6,13,24,5,16

Constructed Soil Filter (CSF)
known as Soil Biotechnology (SBT)is a particular type of unit system which not only works in formulating soil environment in which fundamental processes of nature viz. respiration, mineral weathering but also brings photosynthesis together about the bioconversion.15,19,10There are several types of land treatment systems such as slow-rate irrigation system,14overland flow system,21rapid infiltration systems, sand filters,4soil infiltration systems,6and intermittent buried sand filters.18A process cost is not matching with processing demands with local operative skills and space constraint has lessen their uses.4The treatment of wastewater is well known to all but not at all utilized due to poor soil and the chocking of the same so large space requirement and vague water quality reaching the ground water.SBT is good and easy method of treatment but existence and development of bacteria, and adequate space for construction n and the problems of treatment of unit its filtering and cleaning affecting of its uses.

The main aim of present study is not only focusing the problems of rural wastewater treatment but also providing a system for the purification of domestic wastewater by easiest, economically and eco-friendly way.


Materials and Methods

The ABGS purifier consist of four stages in sequence on the principle of gravitational flow; equalization tank, brickbat purifier, pebble and sand purifier, and char coal and grit purifier. The AGBS purifier processes are; equalization, aeration, sedimentation, and filtration. A layout dimension of experimental model of ABGS purifier as shown in Figure 1. Details about media used in each unit of ABGS purifier given in Table 1.

图1:abg的布局purifier
Click here to view figure


The first unit of ABGS purifier is an equalization tank. It is helpful for equalizing of raw water properties. Moreover the second stage consist of Brickbat purifier it has three partition walls that provided at closure frequency which has forms zig-zag flow pattern for proper mixing and of the domestic wastewater. This unit replenishes depletion of oxygen demand after organic outfall and reduces the concentration of pollutants.The third unit of ABGS purifier fills with pebbles and sand. Similar to the second unit, it has three partition walls which have forms zig- zag flow.

Moreover, at this stage,pebbles and sandpresent and molecular attraction between negatively charged particles and positively charged particles, and allows small particle to get adsorbed on the surface of sand and grit particles.In the same way ,it helps bacterial growth in the voids of sand grains, formation of zoological biofilm on the surface of sand grains. The bacteria are developed in the process and uses organic impurities in water for their feeding. They convert organic impurities into harmless compounds by a complex biochemical action, after that it reduces organic matter in the domestic wastewater. The fourth unit consists of three partition walls to provide up and down flow of the domestic wastewater with char coal media in first two compartment and further two compartment with a grit media.

Table 1: Details of the ABGS purifier

Beds

Medium

Size of Material

(mm)

Bed Dimensions (m)

Bed Surface Area (m2)

Flow Pattern

Ist

Brick-Bates

80-100

0.60*0.45*0.45

0.27

Zig- Zag

IInd

Sand (Lower Media)

0.25-1.00

0.60*0.45*0.20

0.27

Zig- Zag

Pebbles (Upper Media)

40-60

0.60*0.45*0.10

IIIrd

Charcoal

And

30-50

0.30*0.45*0.45

0.135

Up- down

Grit

5-10

0.30*0.45*0.45

0.135

Up- down

Result and Discussion

Samples of a municipal wastewater have been collected daily and passed through the ABGS purifier. Its physiochemical analysis of BOD, COD, Turbidity TSS and pH is carried out as per standard methods of APHA, 2005.1Results tabulated in Table 2.

Table 2:Performance of anexperimentalmodel for the treatment ofmunicipal wastewater

.Avg. Week

Municipal wastewater Parameters in 2016

BOD (mg/L)

COD (mg/L)

Turbidity (NTU)

TSS (mg/L)

pH

Influent (Avg.)

Effluent (Avg.)

Influent (Avg.)

Effluent (Avg.)

Influent (Avg.)

Effluent (Avg.)

Influent (Avg.)

Effluent (Avg.)

Influent (Avg.)

Effluent (Avg.)

2 Aug.2016

120

18

262

40

54

13

86

22

7.3

7.7

9 Aug. 2016

125

14

245

30

58

10

84

20

7.0

7.4

16 Aug.2016

130

11

260

30

67

08

92

27

6.9

7.6

23 Aug.2016

135

12

275

20

55

05

95

24

7.2

7.5

30 Aug.2016

140

10

352

20

70

06

87

18

7.0

7.9

6 Sept.2016

143

11

267

20

60

08

100

21

7.3

8.0

13 Sept.2016

138

09

252

20

65

04

97

18

7.3

7.6

Removal of BOD and COD

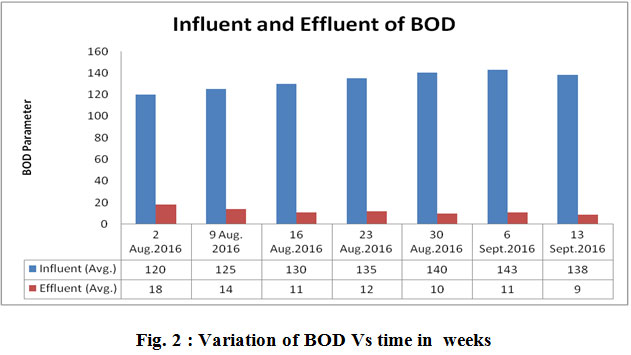

Figure 2 show the BOD values of Influent (120–143 mg/L) and effluent (9-18 mg/L ) with removal efficeiency of 92-87% while figure 3 represent the COD values of Influent (345-352mg/L) over Effluent (20-40 mg/L) with COD removal efficeiency of 93-89 %.

Figure 2 : Variation of BOD Vs time in weeks
Click here to view figure

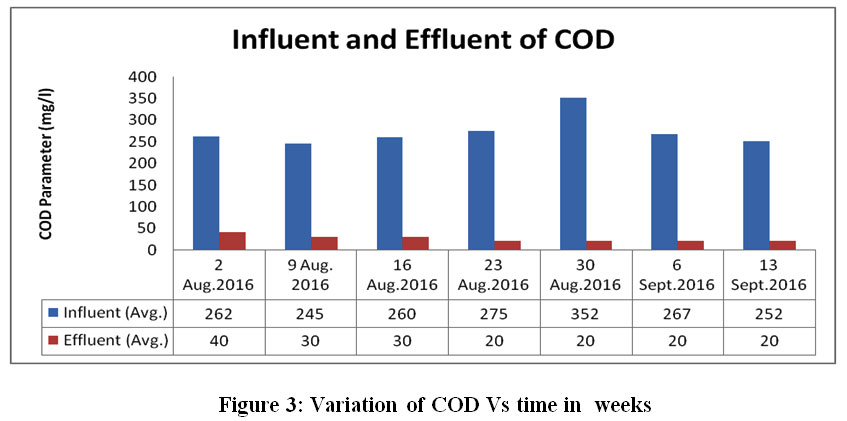

Figure 3: Variation of COD Vs time in weeks
Click here to view figure


Removal of TotalSuspended Solids(TSS)

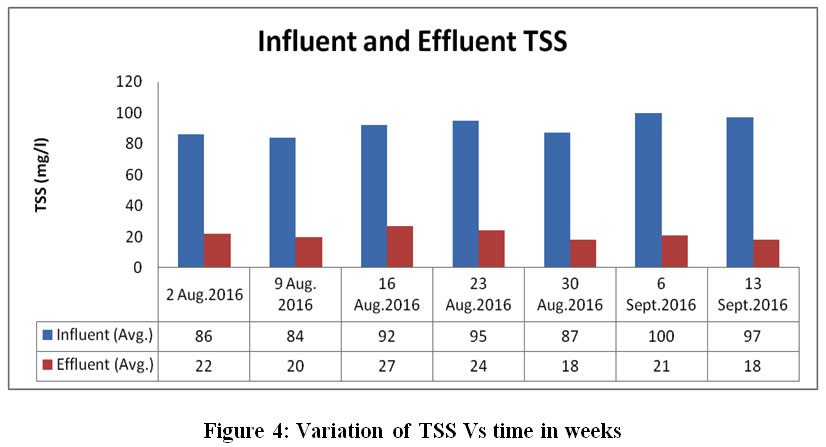

Suspended substances play an important role in characterizing the treatability and hence the degree of contaminant removal in waste water. Therefore, removal of TSS is one of the detrimental criteria in domestic wastewater treatment. Fig.4 TSS concentrations in the raw sewage were 91 ± 6 mg/ L, which was reduced to 13 ± 3 mg /L. This show 80 - 78% removal efficiency.

Figure 4: Variation of TSS Vs time in weeks


Removal of Turbidity

Figure 5 shows the turbidity levels in the influent (54-78 NTU) and effluent (03-13 NTU) with removal efficiency of 95 - 85%.

Figure 5: Variation of Turbidity Vs time in weeks
Click here to view figure


pH Level

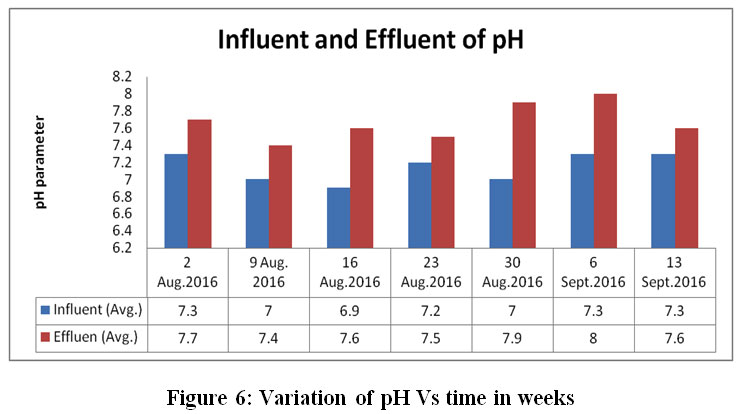

Influent pH (7.7-6.9) and effluent pH (8.0-7.2) of all the samples were found to be close to neutral showing buffering capacity of ABGS as shown in Figure 6.

Figure 6: Variation of pH Vs time in weeks
Click here to view figure


Performance characteristics for various methods

The values are given in the Table 3 compares a few selected mechanized and natural methods of treatment. Each treatment method has compared with a treatment by the ABGS Purifier .In the terms of various criteria or parameters in order to compare the ABGS purifier for the wastewater treatment.

Table 3:Typical performance characteristics for various methods

Process

BOD Removal %

Land, sq m /person

Operational Characteristics

Equipment requirement (Excluding screening and grit removal which are required in all cases)

Sludge Handling

Extended aeration

95-98

0.15 – 0.20

Simpler than activated sludge

Aerators, recycle pumps, sludge scrapers (for large settlers)

No Digestion, dry on sand beds or use mechanical dewatering devices

Conventional Activated sludge

85-92

Skilled operation required

Aerators, recycle pumps, scrapers, thickeners, digesters, dryers, gas equipments

First digest then dry on beds or use mechanical devices

Conventional Trickling filters

80-90

0.20 – 0.30

Skilled operation required

Trickling filter arms, recycle pumps, sludge scrapers, thickeners, gas equipment

First digest then dry on beds or use mechanical devices

Facultative aerated lagoon

75-85

0.30-0.40

Simple

Aerators only

Manual desludging once in5-10 years

UASB’s

75-85(a)

0.15-0.20

Simpler than activated sludge

Nil (except gas collection and flaring; gas conversion to electricity is optional)

Directly dry on sand beds or use mechanical devices

Waste Stabilization Pond

75-85

1.0-2.8

Simplest

Nil

Manual desludging once in5-10 years

Land Treatment/ Irrigation

80-90

10-20

-

Sprinklers or drip irrigation(optional)

Nil

ABGS Purifier

90-94%

0.05-0.03

Simplest, No skilled operation required. It works on gravitational flow

Nil ( Except small amt. of power required to operate 1HP pump for 15 min. daily for the aeration purpose)

Annually Directly dry on Beds

A land requirements for the ABGS purifier is 0.05-0.03( sq.m/person) which is less as compared with the typical methods, in addition the used media for the ABGS purifiers is simple and locally available hence it proves that it is an economical method of the wastewater treatment.

Conclusion

ABGS purifier experimental model has been developed and applied to treat the domestic wastewater at Government college of Engineering Aurangabad campus. General objective of this study was to develop thedecentralized domestic wastewater treatment system by using locally available material, no pretreatment requirement, less land requirement, minimum electrical power requirement and no mechanical parts.Results show that removal of BOD (120-143 to 9-18 mg/L), COD (345-352 to 20-40 mg/L), TSS (84-120 to 15-27mg/L), Turbidity (54-78 to 03-13 NTU) and pH (7.7-6.9 to 8.0-7.2) levels. Percentagewise contaminants removal are BOD (92% - 87%), COD (93 - 89%) and TSS (80 - 78%) and Turbidity (95 - 85%) . The efficiency of ABGS purifier for removal of BOD, COD, TSS, Turbidity and Physical properties are satisfied standards for discharging treated wastewater ( Ministry of Enivironment,Forest and Climate Change,India, 2017). It is recommended that the ABGS purifier used to treat the domestic wastewater in rural areas.

Acknowledgements

The corresponding author thankful to Government college of Engineering Aurangabad for giving a permission to install a pilot model at the college campus.

References

  1. American Public Health Association (APHA). “Standard Methods for the Examination of Water and Wastewater. American Public Health Association.”American Water Works Association and Water Pollution Control Federation, Washington, DC(2005).
  2. Arceivala Soli J and Shyam R Asolekar, “Wastewater Treatment for Pollution control and Reuse.” Published book by Tata McGraw –Hill Professional, New Delhi, India.pp.61 (2012).Attanandana T.B., Saitthiti S.T., Kritapirom S.S., and Wakatsuki L.T. “Multi-media-layering system for food service wastewater treatment.”Journal of Ecology Engineering, 15:133-138(2000).
  3. Bahgat M.D. and ZayedM.A.“Sand-Filters used for wastewater treatment: build up and distribution of microorganisms.”Journal of Water Resource, 33:1949–1955 (1999).
    CrossRef
  4. Bécares E. “Limnology of natural systems for wastewater treatment; Ten years of experiences at the experimental field for low-cost sanitation in Mansilla de lasMulas (León, Spain) Limnética.” ,25:143–54(2006).
  5. Brix, H., “Treatment of wastewater in the rhizosphere of wetland plants—the root zone method.”Journal of water science and technology, 19:107–118(1987) .
  6. Jenssen, P.D. and Siegrist, R.L., “Technology assessment of wastewater treatment by soil infiltration systems.”Journal of water science and technology, 22 (3): 83–93(1990).
  7. Cooper, P.F., Job, G.D., Green, M.B., Shutes, R.B., “Reed Beds and Constructed Wetlands for Wastewater Treatment.”WRc Publications, Medmenham, Marlow, UK(1996).
  8. Hench, K.R., Bissonnette, G.K., Sexstone, A.J., Coleman, J.G.,Garbutt, K., Skousen, J.G., “Fate of physical, chemical, and microbial contaminants in domestic wastewater following treatment by small constructed wetlands.”Journal of Water Resource, 37: 921-927.(2003).
    CrossRef
  9. Kadam A, Oza G.H., Nemade P.D., Shankar H.S., “Treatment of municipal wastewater using laterite-based constructed soil filter.”Journal of Ecological Engineering, 36 (7) :1051-1061.(2009)
    CrossRef
  10. Kivaisi, A. “The potential for constructed wetlands for wastewater treatment and reuse in developing countries: a review.”Journal of Ecological Engineering,16:545(2001).
    CrossRef
  11. Luanmanee, S., Attanandana, T., Masunaga, T.,Wakatsuki, T., “The efficiency of a multi-soil-layering system on domestic wastewater treatment during the ninth and tenth years of operation.”Journal of Ecol. Eng.18:185–199(2001).
    CrossRef
  12. Mara D.D., Mills S.W., Pearson H.W., Alabaster G.P. “Waste stabilisation ponds: A viable alternative for small community treatment systems.”JIWEM,6:72–78(1992).
  13. Ou Z., Sun T., Li P., Yediler A., Yang G., Kettrup A., “A production scale ecological engineering system for the treatment and reutilization of municipal wastewater in the Inner Mongolia, China.”Journal of Ecol. Eng., 9:71–88(1997).
    CrossRef
  14. Pattanaik B.R., Gupta A., Shankar H.S., “Residence time distribution model for soil filters.”Journal of Water Environ. Res.,76: 168–174(2004).
    ​​​​​​​CrossRef
  15. Puigagut J, Villaseñor J, Salas JJ, Bécares E, García J., “Subsurface-flow constructed wetlands in Spain for the sanitation of small communities: a comparative study.”Journal of Ecological Engineering, 30:312–319(2007).​​​​​​​
    ​​​​​​​CrossRef
  16. Saeed T. and Sun G. “A lab-scale study of constructed wetlands with sugarcane bagasse and sand media for the treatment of textile wastewater.”Journal of Bioresource Technology, 128:438–447(2013).
    ​​​​​​​CrossRef
  17. Schudel, P., Boller, M., “Onsite wastewater treatment with intermittent buried filters”Journal of Water Sci. Technology, 22:93–100(1990).
    ​​​​​​​CrossRef
  18. Shankar, H.S., Pattanaik, B.R., Bhawalkar, U.S., “Process of treatment of organic wastes” Journal of US Patent No. 6(890):438(2005).
  19. Schreijer M., KampfR.,Toet, S. and Verhoeven J. “The use of constructed wetlands to upgrade treated sewage effluents before discharge to natural surface water in texel island, the netherlands-pilot study.”Journal of Water Sci. Tech., 35 (5):231-237(1997).
    CrossRef
  20. Smith, R.G., Schroeder, E.D.,. “Field studies of the overland flow process for the treatment of raw and primary treated municipal wastewater.”Journal of Water Pollut.,57:785–794(1985).
  21. USEPA, “Onsite wastewater treatment systems manual.” EPA/625/R-00/008, Office of Water, Washington, D.C. (2002).
  22. Vymazal, J., Brix, H., Cooper, P.F., Green, M.B., Haberl, R. “Constructed Wetlands for Wastewater Treatmentin Europe.” Backhuys Publishers, Leiden, Netherlands(1998).
  23. Vymazal J., “The use of sub-surface constructed wetlands for wastewater treatment in the Czech Republic: 10 years experience.”Journal of Ecol. Eng., 18:633–646(2002).
    ​​​​​​​CrossRef
  24. Wakatsuki, T., H. Esumi, S. Omura. “High performance and N and P removable onsite domestic waste water treatment system by Multi-Soil-Layering method.”Journal of Water Sci. Tech., 27(1) :31-40(1993).
    ​​​​​​​CrossRef
  25. Anurag Banerjee, NilanjanBanik and AshvikaDalmia, “ Demand for household sanitation: The case of India”, ART Net Working Paper Series No.154, Bangkok, ESCAP. http://artnet.unescap.org.(2016).
  26. Swachhta Status Report NSSO, Ministry of Statistics and Programme Implementation, Government of India(2016).
  27. UN,“The Millennium Development Goals Report 2015”. UN, New York(2015).
