Introduction

Marine pollution is one of the most priority issues facing by the whole world. It damages the ecosystem and habitat of many marine organism of coastal environment. To rectify this problem, number of monitorFing programs have been initiated.^1-2Solid waste generated form anthropogenic activates along with coast line have a unique characteristic higher generation densities. The waste originated from different sources have tendency to transport through current, wind and wave action reported waste transfer from far-flung continents and remote island through tidal and wave movement.

Solid waste generated in coastal areas, which is usually found along the shoreline, has high proportionality of plastic relate debris are slowly degradable.^3-5Sheavly (2005) reported 70-80% of marine pollution associated with plastic waste.⁶Accumulation of this debris on beaches reduces the aesthetic view, causing the harm to wildlife. It is estimated over 6000 species are effected by plastic litter to update^7、8海洋生物摄取的宏观和微观塑料tic as the food particles, the effects of these particles include the internal and/or external abrasions and ulcers; and blockages of the digestive tract, which resulted in satiation, starvation and physical deterioration.⁹According to the U.S Marine Mammal Commission, 136 marine species have been reported in entanglement incidents, including six species of sea turtles, 51 species of seabird, and 32 species of marine mammals.¹⁰

There are few studies describing the quantity and quality of solid waste in the water column on beaches, mostly solid waste is associated with shoreline are highly reported and monitoring worldwide.¹¹However plastic i.e Synthetic polymers (PET,PP PE,LDPE,HDPE) constitute the major part of floating marine debris. The major used plastic type polyethylene (PE) and polypropylene (PP) have lower densities than seawater, they float easily in water bodies due to their density or ultimately sink because their density changed due to biofouling and leaching of additives. Therefore Deep-sea surveys showed 50 % of plastic litter objects sink to the seafloor.¹²The geographic distribution of debris on the ocean base is characteristically subjective by geomorphology, hydrodynamics, and human factors.^5,15Presence of large amount of plastics has been reported in seabed of all seas and oceans^14-16but less reported in remote areas such as Antarctica, particularly in deep waters.¹⁶Pakistan is considered adeveloping country, blessed with a long coastal area which is under threat due to variety of pollutants. the industrial wastewater discharge into sea is considered the top environmental issue in Karachi, now solid waste generation on coastal areas and its impact become a considerable issue. Only a few studies have been done to estimate the costal debris.^17,18The present study is the comprehensive attempt to figure out the complete picture of Karachi coast in the terms of solid waste composition and distribution.

Method

Karachi is situated between 24°45′ N to 25°37′ N and 66°42′ E to 67°34 E along 27 km shoreline of the Arabian Sea. The coast of Karachi starts from Hub River out fall in the Arabian Sea and the open sea coastline of Karachi ends at Korangi creek. The coastline of Karachi which consists of Sandy, rocky and recreational beaches (Clifton, Paradise, Sandpit, Hawskbay, Turtle beach, Sonorah beach and French beach).

The study was conducted on four main beaches and 2 creeks of the Karachi coast (figure 1). Among the solid waste Composition, this study also focused on classification of three types of plastic including large microplastic, (1 to < 6 mm), mesoplastic ( 6 to < 25 mm) and macro plastic ( ≥25 mm) respectively. The particles size less than 1 mm cannot be identified without microscope, this study is targeted on the mention sized ranged for the microplastic.

For the estimation of solid waste and quantification of plastic particles 10 x 10m large quadrates were selected along the shoreline and collected all the solid waste in the range of quadrate and sieve out the micro and macro plastic. Debris on the sieve was stored in the zipper bags separately and sent to the laboratory. Natural debris such as dead leaves, fish bones, seaweeds were excluded during sorting and categorizing of solid waste. Each type of item was counted and recorded against each class. The abundance and relative proportionality of solid waste on three sampled beach sites were compared by calculating total amount of waste generate on 25 quadrates.

Figure 1:Shows the map of Pakistan along its total coastal areas as the second zooming picture representathelocated sampling sites atbeachof Karachi, Pakistan Click here to view figure

Figure 2: Proportionality of marine debris recorded in coastal beaches of Karachi, Pakistan Click here to view figure

Result and Discussion

The coastal area is one of the most productive areas which provides fish and other seafood but also helps trade in immense volume. Debris in the aquatic environment increased threats to the marine environment and possess great challenge for control and remediation. Contribution of human activity mostly beach visitors and recreation activity is a primary source of debris on the coastal line. This research work presents the baseline information on coastal beaches debris at Karachi, Pakistan.Nature has endowed Pakistan with some of the finest beach areas in the region but the expansion of industrialization degrades the coastal areas and natural marine environment.The data analysis of waste indicates the majority of items related to food packings, bottles, bags and cups. Plastic accounted for 88% among the total calculated debris on designated site. Thisplastic debris can be found floating in all the world's oceans and everywhere. The seabed especially near coastal regions are badly contaminated, with plastic bags.The debris which was less common on the beaches was fishing net as they are highly disperse to the wave current. Thermocol/ Styrofoam accounted the second largest pollutant in coastal area. It has a significant impact on marine environment as they are light weighted, easily float and break down into small pieces and accumulate in the marine habitat as micro and macro particles. In Koran, Chile and Japan Styrofoam reported as a serious pollution.^18-20,32

As per the current survey the behavior of visitor i.e. accidently or intentionally litter the beach is an important contributor of marine pollution. Among all the beaches, most dominant item in terms of weight were plastic, almost all the beaches of Karachi were polluted from plastic. Following the global tendency^21-22this non-degradable, long durable and inexpensive polymer makes up the highest percentage of total items recorded in the area (Fig. 4 to Fig. 9). Only one study¹⁷have been conducted in the past covers the all beaches of Karachi. According to that study one most common item were recorded was plastic, and Paradise beach was characterized as the most pollutant beach. Our result showed higher amount of plastic as compared to the Qari R¹⁷study which means there was an increased amount of litter on the coast of Karachi within two or three years. Zalasiexiczet al.,²³it has been estimated that amount of plastic in the sedimentary deposit seems likely to grow several-folds over the next few centuries. Therefore an immediate action is very necessary to clean it. This debris somehow affects the health of beach visitors causing aesthetic problem and fatal consequences for marine biota.^25-27

The comparison of all beaches revealed that Clifton beach had greater qualities of debris than other sampling sites (Fig 3).The second large debris was glass and metals, as this side contain number of food canteens for facilitates the visitors. Mostly they are the non-degradable and devastated pollutants effect the marine life along the coast and off-shore. Apart from this, water quality of Clifton beach is continuously degraded by industrial and domestic discharges^27-28as it receiving wastewater of two ephemeral rivers, namely Lyari and Malir River carrying the floating debris along with wastewater of city. Shaheenet al.,²⁹reported that costal water of Karachi polluted with the pathogenic bacteriaEscherichia coli,Streptococuss anginosus, Salmonella typhimurium, Psuedomonas aeroginosa, StaphylococussaureusandBacillus subtilisindicated the unhygienic coastal environmental.

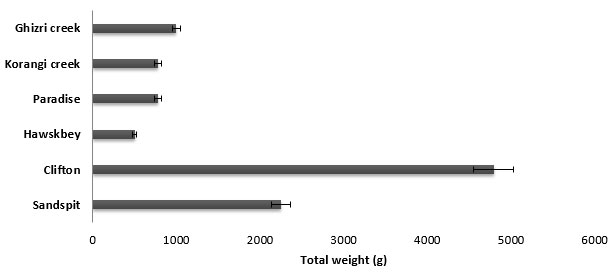

Figure 3: Total plastic debris collected (a) Sandspit (b) Clifton (c) Hawsbey (d) Paradise (e) Korangi creek (f) Ghizri creek. Click here to view figure

Sandspit and Hawksbay beaches are two of the eleven internationally most significant nesting beaches. Thousands of Green Sea Turtles (Chelonia mydas) nest on Sandspit and Hawksbay beaches every year. Our results indicated higher number of Plastic pollution in sandspit followed by Paradise and Hawks’ bay (Fig 3,4 and 7).These sites are far away from the city as compared to Clifton and mostly cover with the huts therefore these are less polluted as compare to Clifton beach. However metal and glass waste higher on those sites as visitors are usually love these sites for night stay bring glass bottles and metal items for their entertainment activity and ultimate dispose of on the beaches.

Creek areas of Karachi coast appear to be as polluted as the coastal beaches. The total waste collected from the creeks i.e. Korangi and Ghizri are2365.5 g and 1039.8 g respectively.Thermocol/Styrofoam are absent in these area (Table 1).Korangi and Ghizri creek are the worst affected creek, where the discharge from industries area, Landi, Korangi and Pakistan steel mill are straight away discharge their wastewater into the sea.^29,20In the terms of water quality, Korangi creek was found to be most polluted with coliform and other pathogenic bacteria. Shaheenet al., 2016 reported the prevalence ofVibrioalginolyticusalong withVibrioparahaemolyticusin Ghizri creek, followed by other commonly reported bacteria. According to the Latest study of Amarlet al., 2015 plastic becoming an important media of transporting the microorganism across the coastal environment. The nature and structure of plastic facilitates the growth of unique microbial communities, many scientist called it “Plastisphere”.as its act as a reservoir of harmful algal bloom species, faecal indicator organisms and pathogenic bacteria.^30-31

Figure 4: Composition of solid waste on the Sandspit beach Click here to view figure

Figure 5: Composition of solid waste on the Clifton beach Click here to view figure

Figure 6: Composition of solid waste on the Hawskbey beach Click here to view figure

Figure 7: Composition of solid waste on the Paradise beach Click here to view figure

Figure 8: Composition of solid waste on the Korangicreek Click here to view figure

Figure 9: Composition of solid waste on the Ghizri creek Click here to view figure

Table-1 Description of solid waste collected at different sites of Karachi coast

Conclusion

这项研究展示了基线数据distribution and composition of debris along the coast of Karachi, Pakistan by using quadrates method. However in terms of solid waste pollution these beaches of Karachi are moderately polluted as compare to the other beaches of world. This study reveals the human behavior is the key component of solid waste debris on the coastal sides. Therefore public awareness programs and their positive attitude towards reducing the pollution will be helpful to keep the beaches clean.

Acknowledgments

We would like to thanks all the staff member of Environmental studies department and the undergraduate students for their help throughout the studies.Funding resources provided by Institute of Environmental studies, University of Karachi.
