Current World Environment

Introduction

Undeniably, all water resources be it a surface water source or groundwater, originates from rainfall and constitute the main sources of water for domestic, industrial and agricultural usage. Water scarcity and pollution problems have generated public discussions and concerns by both policy makers and researchers. This has led to several studies on the quality of groundwater and surface water in Ghana using conventional methods.¹Projections from United Nations, 2014, reveals that about 1.8 billion people of the world's population would be facing water availability problems by 2025. Increasing growth of populations, industrialization, intense irrigation coupled with global climate change is putting much pressure on available sources of water.²

Climate in Ghana is warm with a mean annual temperatures ranging 24°C to 36°C. In the southwest, the mean annual rainfall is maximum of about 2250mm, 1000mm in the north and 900mm in the southeast. Humidity on the coast is about 90% whilst during the dry season, humidity is about 20% in the north. Heavy rainfall occurs from about April through late June. The water scarcity condition occurs from November to January throughout the country.³

Rainwater harvesting is a technique used for the collection, conveying and storing of rainwater for domestic, industrial or agricultural use. This technology can either be direct collection or storage of the run-off rainwater for direct use in future. Rain water harvesting is a technology that seeks to harness surface and groundwater, prevent evaporation and seepage losses. In semi-arid parts of East Africa (e.g. Tanzania and Kenya), and in Burkina Faso of West Africa; RWH systems are widely practiced, however in Ghana the practice is different. It is rarely practiced in the institutions, even though it is known that RWH has been incorporated in many missionary and government residences during the colonial era.⁴

Rainwater harvesting in households of Ghana, involves the use of a small water storage containers of an average volume of 16 litres which are placed below the tips of roofs to receive water whenever there is rainfall.These storage containers catch rains as they fell and are transferred into main storage containers in their various houses mainly by women and children as these buckets become full.⁵In other communities, residents rely on boreholes, unprotected streams, dams, rivers, dug-outs and impounded reservoirs for their domestic water demands. Few of these water sources serve as drinking places for animals as well, and the health risks posed by this are endless and far reaching. Harvesting of rainwater with roof-top has proven to be among the most growing domestic water resources.⁶

As of November 1, 2012, the Ghana WASH project initiated by USAID had provided several facilities including rainwater harvesting systems to variousrural communities in Central, Western and the Greater Accra Regions.⁷Various facilities provided are outlined in Table 1.

Table 1: Ghana WASH initiatives

Rainwater harvesting technique has the capability to reduce dependency on public supply system, conserve water resources and subsequently save money for other developmental activities. To achieve these, this study seeks to present rainwater harvesting technique as an add-on to water supply in the Agona West Municipality specifically Agona Swedru.

Methodology

Description of area of research work

The study area is Agona Swedru and is the capital of Agona West Municipality, one of the cocoa growing areas in the country. The Agona West Municipality situated in the eastern corner of the Central Region of Ghana lies within latitudes 5⁰30’ and 5⁰50’N and between longitudes 0⁰35’ and 0⁰55’W⁸.As of 2013,the population of study area was68,216 with a spanning area of 540 km².Swedru as simply called, can be located within the wet semi-equatorial climate zone. This area, having a bi-modal rainfall system, with maximum rainfall felt in May/June and September/October has an annual rainfall range of 1000mm - 1400mm. This situations puts this location into the forest zone, which allows for two main growing/wet seasons. The dry-seasons run from December to March with the highest mean monthly temperature of 33.8⁰3月/ 4月之间C被记录。最低的米ean monthly temperature experienced often in the month of August is estimated as 29.4⁰C.⁹

Rainwater harvesting

Rainwater harvesting is an act in which rainwater is harnessed, stored and utilized later for either domestic or agricultural purposes. The rainwater could be harvested from different locations, however the roof-top catchment systems are mostly adopted for supplies in homes.

Rainwater studies in Ghana

An assessment on the current state of rainwater harvesting in the Northern Region of Ghana suggested a form of treatment to be done on water harvested before consumption. It also outlined measures on how rainwater harvesting could be used to address Pure Home Water‘s goal of reaching one million people in the coming years.¹⁰As per research work carried out on rainwater harvesting in the peri-urban areas of Accra such areas are suitable for the implementation of Domestic Rainwater Harvesting (DRWH), however it is only a complementary source to the water supplement in the area.¹¹A comprehensive research carried out on the chemical composition of rainwater in a mining community in Ghana (Obuasi) revealed that rain water in area was acidic i.e. (4.0 to 5.6). Anthropogenic activities in the area have strongly influenced the rainwater with Lead (Pb) found to be above the WHO permissible limit of 0.01mg/l as a potable water.¹²As per a case study of central Gonja district in the Northern part of Ghana, rain water is suitable for the activities such as washing, bathing, cooking and drinking in the district.⁶A research on Rainwater Harvesting in the Coastal Savanna regions of Ghana recommended that government intensifies its programmes and activities, including awareness campaigns and training of artisans at the local level to create renewed interest in the activity. It was also recommended that the available water resources, especially the major rivers be harnessed for irrigation. The research again recommended that manufacturing industry in Ghana takes up the challenge to produce RWH components for sale to the public.¹³An assessment on physico-chemical and bacteriological parameters of rainwater in Adukrom- Akwapim, where there is heavy rainfall during the rainy seasons was carried out. Direct rainfall, stored rainwater and roof catchment rainwater were sampled and studied. The result showed a significant increase in physico-chemical and bacteriological parameter from the direct rainfall to roof catchment and the stored rainwater. They suggested treatment of water ought to be done before drinking.¹⁴A research on chemical and isotopic composition of rainwater in the coastal, forest and mountainous parts of Volta region of Ghana recommended, harvesting of rain water and storing for domestic use because it came to bear that thephysico-chemical parameters of rainwater was satisfactory.¹⁴An assessment of rainwater harvesting as supplement to domestic water conducted in Kotei Ghana concluded that rainwater is suitable foreither bathing or washing but not for drinking.¹⁵

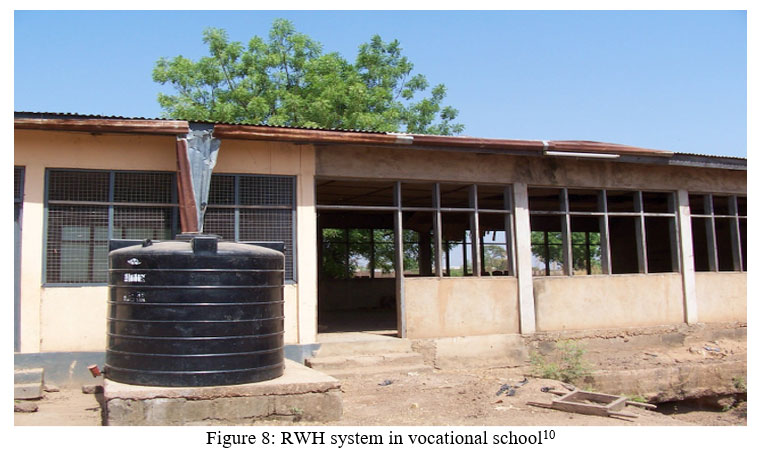

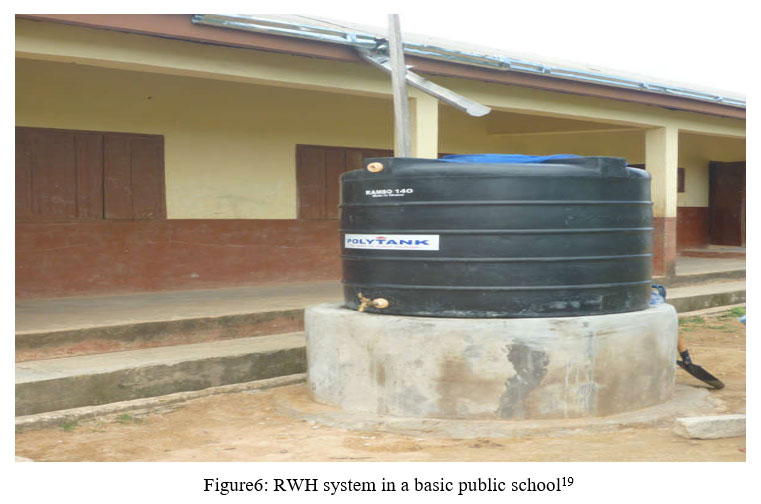

In general, different kinds of rainwater harvesting systems are installed in Ghana. Small storage tanks are used to collect rainwater from different roof catchments. Some of the existing rainwater harvesting systems installed in Ghana are presented in Figures. 1 to 8. It can be seen that there is no understanding of filter presently. There are many important issues and challenges pertaining to rainwater harvesting in Ghana and have been discussed in this paper.

Results and Discussion
Rainwater harvesting techniques common in Ghanafig1

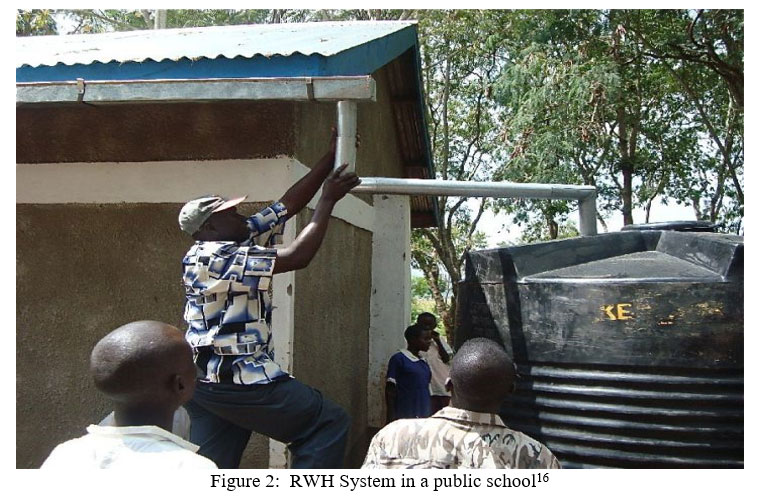

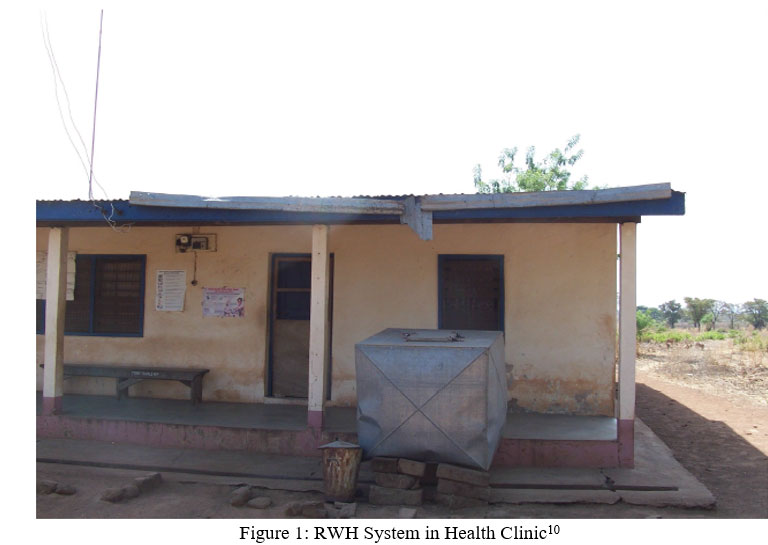

In Figure. 1, there is a 500L galvanized steel tank that serves water to an unknown number of people in the Pong Tamale Health clinic. It could be seen that filter was not incorporated in the design which puts the quality of water being used questionable.¹⁰Figure. 2 presents a situation of the rainwater harvesting system being employed in a public school in Ghana. Again, filter is absent in the set up.¹⁶An initiative by Ghana WASH project under the USAID can also be seen in Figure. 3 where the rainwater harvesting system has been established in a basic school to provide water to the young students. Installation of filter over here cannot be found.¹⁷A household in a coastal area of the country where the storage tank of the rainwater harvesting system was made of concrete is shown in Figure. 4. The situation is not different from the already discussed. Filter was neglected in the design.¹³Figure. 5 shows a latrine inDoblo Gonnoin which rainwater harvesting system has been implemented, however the essence of filter was ignored in the set up.¹⁸Figure. 6 is a rainwater harvesting system in a public school inSefwi- Bonwire. The system is not an exception of those with filters absent.¹⁹Intagrad also supported in the construction of a rainwater harvesting system for hand washing in Tamale. The absence of filter can also been seen in Figure. 7.²⁰Figure. 8 also shows a rainwater harvesting system in Pong Tamale Vocational School Boys Correctional Center. It is clear here as well that filter has been neglected in the design.¹⁰

Issues and challenges

The present section provides a description on different parameters and issues related to rainwater harvesting in Ghana. For the implementation of this scheme, the challenges are hereby discussed below.

Poor roofing materials

The catchment of a RWH method first receives the rainfall directly from the sky hence adequate attention is needed with regards to its composition. “Slates” or asbestos sheets and aluminum sheets are the mostly used roofing in Southern part of Ghana, however, thatch dominates as one moves to the Northern part. Generally, any roofing form is acceptable provided it is able to collect rainwater but for drinking purposes, waters collected from roofs of thatched and asbestos need proper treatment. Therefore, the suitability and choice of such roof types have to be demonstrated by proper study⁵.

In Figure. 1, there is a 500L galvanized steel tank that serves water to an unknown number of people in the Pong Tamale Health clinic. It could be seen that filter was not incorporated in the design which puts the quality of water being used questionable.¹⁰Figure. 2 presents a situation of the rainwater harvesting system being employed in a public school in Ghana. Again, filter is absent in the set up.¹⁶An initiative by Ghana WASH project under the USAID can also be seen in Figure. 3 where the rainwater harvesting system has been established in a basic school to provide water to the young students. Installation of filter over here cannot be found.¹⁷A household in a coastal area of the country where the storage tank of the rainwater harvesting system was made of concrete is shown in Figure. 4. The situation is not different from the already discussed. Filter was neglected in the design.¹³Figure. 5 shows a latrine inDoblo Gonnoin which rainwater harvesting system has been implemented, however the essence of filter was ignored in the set up.¹⁸Figure. 6 is a rainwater harvesting system in a public school inSefwi- Bonwire. The system is not an exception of those with filters absent.¹⁹Intagrad also supported in the construction of a rainwater harvesting system for hand washing in Tamale. The absence of filter can also been seen in Figure. 7.²⁰Figure. 8 also shows a rainwater harvesting system in Pong Tamale Vocational School Boys Correctional Center. It is clear here as well that filter has been neglected in the design.¹⁰

Issues and challenges

The present section provides a description on different parameters and issues related to rainwater harvesting in Ghana. For the implementation of this scheme, the challenges are hereby discussed below.

Poor roofing materials

The catchment of a RWH method first receives the rainfall directly from the sky hence adequate attention is needed with regards to its composition. “Slates” or asbestos sheets and aluminum sheets are the mostly used roofing in Southern part of Ghana, however, thatch dominates as one moves to the Northern part. Generally, any roofing form is acceptable provided it is able to collect rainwater but for drinking purposes, waters collected from roofs of thatched and asbestos need proper treatment. Therefore, the suitability and choice of such roof types have to be demonstrated by proper study⁵.

Inappropriate harvesting facilities

Few people use the poly-tank of reasonable sizes in their homes to store water due to the high cost incurred in the construction of bigger storage tanks. Most household use small containers to store harvest rainwater. Majority of these containers have small volumes to store sufficient water for longer days. Owing to this, substantial litres of rainwater gets lost to households and waste as run-off. In order to catch sufficient litres of water, provision of large underground or bigger storage tank on a raised platform ought to be made.⁵

Type of house occupancy

住在租来的房子里,但是似乎没有准备好to pump money in RWH facilities, since such disbursements may tie them to their current accommodation longer than their future situations may permit. They rather prefer acquiring smaller and mobile storage facilities, usually plastic containers for water storage.⁵

Inaccurate land boundaries

Having knowledge of one's land boundary is very essential to households having the power to engage in any constructional activities one their land without the fear troubles from land authorities and also encroachment. However, improper land demarcation is a major issue in some communities in Ghana. This situation creates problems among land owners in a particular locality thereby making it uneasy to delineate areas where storage facilities should be sited. Proper land boundary demarcation is therefore a must to avoid land disputes and to expedite the process if large scale rainwater harvesting is to be adopted.⁵

Quality of water

Recent developments reveals that rainwater in general rainwater is potable however, its quality usually gets affected by contaminations on the catchment and in the storage tank. Rainwater collects other contaminating materials that settle on the roofs. These include birds and lizards' excretions, falling plant debris from nearby trees, dust and any other foreign material found on roofs. Hence, installation of a filter is essential in RWH system.⁵

Uneven rainfall pattern

Unstable rainwater supply due to climatic change makes it difficult for one to initiate such project since he/she is unsure as to whether there would be regular rains during rainy days or not. Drying of spells coupled with droughts for longer periods could result serious problems in water supply.⁵

Conclusion and Recommendation

Rainwater harvesting widely is regarded as one of the best methods to harness water for future usage in this era of increasing water availability challenges, as per several studies. It is also evident from various research works that the use of filter in rainwater harvesting is absent in most communities in Ghana hence this paper seeks to come up with recommendation of a filter which should be cheap, easy to assemble and very effective to be adopted. It is also an undeniable fact that in adopting rainwater harvesting, some revenue could be saved as well. It is therefore concluded that rainwater could be harvested to supplement the water needs of residents of Agona west municipality and Ghana at large with respect to bathing and washing.

It is also recommended that the awareness of Rainwater harvesting be intensified to gain the acceptance and adoption of most people. Implementation of rainwater harvesting, will reduce the public water supply dependency and lessen the burden of utility bills which most people complain about. Rapid sand filters should however be incorporated in the design in most communities in Ghana since there is correlation between water quality and the surrounding environment.

Acknowledgement

The authors are highly grateful to the Department of Water Resources Development and Management, Indian Institute of Technology Roorkee for providing the required funding sources to carry out the current study smoothly.

References

1. Kortatsi, B. K. Concentration of trace metals in boreholes in the Ankobra Basin West African.J Appl Ecol. 2006;10(1942):73-87:2.

2. 李,K.E身,穆罕默德Hanafiah, M,阿卜杜勒·Halim, A., &Badusah, J. Rainwater harvesting as an alternative water resource in Malaysia: Potential, policies and development.J Clean Prod. 2016;126:218-222. doi:10.1016/j.jclepro.2016.03.060.
   CrossRef

3. Ministry of Local Government and Rural. National Environmental Sanitation Strategy and Action Plan, Materials in Transition.Gov Ghana. 2010;165.

4. Ltd H-ES. Republic of Ghana ,Ministry of Water Resources Works and Housing.Natl RAINWATER Harvest Strateg Final Rep. 2011;1:1-45.

5. Opare, S. Rainwater harvesting: An option for sustainable rural water supply in Ghana.GeoJournal. 2012;77(5):695-705. doi:10.1007/s10708-011-9418-6.
   CrossRef

6. Issaka, Z. Appropriate Rainwater Harvesting and DomesticWater Quality:A Case Study of Central Gonja District. 2011;142.

7. Agreement C. Ghana Water , Sanitation , and Hygiene ( Wash )Project. 2013;1-52.

8. Report AP. AGONA WEST MUNICIPAL ASSEMBLY 2015 ANNUAL PROGRESS REPORT ( APR ). 2016.

9. Osei, C. Evaluating Post-Flood Disaster Response StrategiesIn Ashaiman And Agona Swedru. 2013;9-38.

10. Barnes, D. A. Assessment of RainwaterHarvesting In Northern Ghana. 2009;101.

11. Lundgren, A.,& Akerberg, H. Rainwater harvesting in the peri-urban areas of Accra: Status and prospects.Dep Geogr Resour Dev. 2006;75.

12. Akoto, O., Darko, G., &Nkansah, M. A. Chemical composition of rainwater over a mining area in Ghana.Int J Environ Res. 2011;5(4):847-854. doi:10.1021/es2035762.
    CrossRef

13. Project E. Clement Dorm-Adzobu RainwaterHarvesting in the Coastal Savanna Region of Ghana. 2012;(104).

14. Sitsofe Kretchy, M. Chemical and Isotopic Composition of Rainwater in the Coastal,Forest and Mountainous Areas of Volta Region of Ghana. 2014.

15. Awuah, E., Gyasi, S.F., Anipa, H. M. K., &Sekyiamah, K. E. Assessment of rainwater harvesting as a supplement to domestic water supply: Case study in Kotei-Ghana.Int Res J Public Environ Heal. 2014;1(6):126-131.

16. obed4washadvocacy. Rainwater Harvesting; a Viable Technology Option to Salvage Water Crisis in Ghana — obed4washadvocacy – obed4washadvocacy. https://obed4washadvocacy.wordpress.com/2016/04/11/rainwater-harvesting-a-viable-technology-option-to-salvage-water-crisis-in-ghana-obed4washadvocacy/.[ Accessed February 9, 2018].

17. Ghana Wash. Rainwater Harvesting «â€¯GHANA WASH PROJECT. http://ghanawashproject.org/water/rainwater-harvesting/.[ Accessed February 9, 2018].

18. worldclass-ghana.org. Project pictures. http://www.worldclass-ghana.org/photos.html. [Accessed February 9, 2018].

19. Water charity. Conclusion of Sefwi-Bonwire School Rainwater Harvesting Project - Ghana | Water Charity. https://watercharity.com/conclusion-sefwi-bonwire-school-rainwater-harvesting-project-ghana. [Accessed February 9, 2018].

20. Roverts, L. Training Akvo RSR users in Ghana - Akvo Foundation. http://akvo.org/blog/training-akvo-rsr-users-in-ghana/. Published 2012. [Accessed February 9, 2018].
