Introduction

The water balance in the field is strongly related to hydrological processes over the surface soils, which are actually affected by the global climate change. Accordingly with the UNESCO, the hydric resources and the soil degradation are the principal factor that threatens the sustainability of the agricultural lands of Latin America.¹

In the case of temporal agriculture, water is the most necessary and limiting factor for the growth and production of crops, depending on the rain-season length and the availability of water in the soil. The water storage capacity of the soil is determined by the effective depth of the roots and the water retention properties of the soil.²

目前,有机amendmen的应用ts (manure, compost, green fertilizer and crops residues) is becoming increasingly more common, the objective being to improve the fertility conditions of the soil, increase the availability of nutrients for the plants, as well as their moisture soil retention capacity .^3-6In semi-arid regions, the supply of organic material for soils’ moisture retention can be essential for the maintenance of their productivity.⁷

Amaranth is an herbaceous plant that produces lots of cereal-type food grain. The cultivation of amaranth has been an alternative for dry areas due to its great adaptability to rain fed conditions. However, long periods of drought can affect the development of these plants.

For that reason, it is important to evaluate the moisture retention capacity of the different amendments to guarantee the development and the goal production of the crop. The objective of the present research was to evaluate the effects of the implementation of a variety of organic amendments in relation to the moisture retention of the soil, alone and in combination with a hydrogel, in order to maintain an acceptable level of moisture for the root system of the amaranth plant (Amaranthus hypochondriacus L.), with the purpose of achieving its vegetative development, due to its dual function of being consumed as a grain and also as a vegetable (the foliar part).

Materials and Methods

The experimental site is located at the Water Museum, municipality of San Gabriel Chilac, Puebla, Mexico (18°18′57″ N and 97°21′34″ O), at 1256 m of altitude. The weather of the zone is semi-arid and warm, with an annual average precipitation of 456 mm and a potential evapotranspiration of 831 mm. The site presents a large period without rain between the months of December and May. The soil characteristics that influence the moisture retention capacity and the development of the plants are demonstrated in Table 1.

Table 1:Physical and chemical characteristics of the soil of the experimentalplot

Variable	Unidad	Valor
pH		7.8
Organic matter (OM)	%	4.9
Field capacity (FC)	% moisture	36.6
Wilting point (WP)	% moisture	25.7
Bulk density	g cm-3	1.08
Sand	%	38.7
Silt	%	41.8
Clay	%	19.5

The plot used for the experiment is located over the Leptosol soil, in terrace conditions, although the substrate in which the roots develop is filled with alluvium material, which has been cultivated with Amaranth under the concept of organic agriculture. An organic amendment characterization was conducted for field capacity and permanent wilting point variables, in the Physical Soil Laboratory of the Post Graduate College (Table 2), Montecinos Campus; likewise the moisture retention curves were calculated (Figure 1).

Figure 1: Relative values of moisture retention of organic materials, estimated in the laboratory. Click here to View figure

Table 2: Physicochemical properties of the organic materials

Material	pH	%OM	FC	WP
Compost	7.9	43.4	79.2	61.1
Corn stubble (Zea mays)	4.8	92.8	267.3	146.3
Amaranth stubble	6.3	86.7	454.3	300.0
Goat manure	8.4	65.3	199.9	160.5
Alfalfa (Medicago sativa) as green fertilizer	7.4	83	393.3	282.9

Fourteen treatments were conducted (Table 3), with the exception of the residual treatment of the corn crop in an organic mulch form (OM). The mixture of the organic amendments with the soil were incorporated into it at a depth of 10 cm, at a rate of 4.5 Kg m^-2,considering Huerta’set al.,⁸recommendations as a reference. Huerta usedMucuna pruriensin order to achieve a medium where the earthworm finds ideal living conditions, which in the present study will be related to an acceptable moisture conformation.

Table 3: Treatments evaluated in field

Code	Treatment
S-CM	Compost goat manure (Capra hircus) with remains of plants
S-MR	Corn stubble (Zea mays)
S-AR	Amaranth stubble (Amaranthus hypochondriacus)
S-OM	玉米茬的组织anic mulch
S-GM	Goat manure
S-GA	Alfalfa (Medicago sativa) as green fertilizer
C	Soil
H-CM	Hydrogel + Compost goat manure (Capra hircus) with remains of plants
H-MR	Hydrogel + Corn stubble (Zea mays)
H-AR	Hydrogel + Amaranth stubble (Amaranthus hypochondriacus)
H-OM	Hydrogel + Corn stubble as organic mulch
H-GM	Hydrogel + Goat manure
H-GA	Hydrogel + Alfalfa (Medicago sativa) as green fertilizer
H	Hydrogel applied directly to soil

Each experimental unit was of 1 m², of circular form, separated by one meter of distance. The hydrogel employed is a commercial product with a capacity to retain water up to 150 times its own weight. This material was previously hydrated and applied during the transplanting process.

Five Amaranth seedlings from a local nursery, all being 20 days old, were transplanted into each experimental unit. The experiment was a complete random array, with 10 repetitions, each of which at the beginning was subjected to constant homogeneous irrigation (each third day) at the beginning, with the objective to support both the plants’ rehabilitation and rooting.

Two repetitions were selected 60 days later, continuing with an uninterrupted irrigation. The irrigation was renewed for 2 additional repetitions at 5, 10 and 15 days later, concluding 60 days and 2 hours after the normal irrigation. Samples were taken from the soil for later measurement of the moisture in the laboratory, via the gravimetric method. The soil was dried inside a drying oven at 105 °C until a constant weight was achieved. The application of Equation 1, was implemented

5 days before the renewal of the irrigation of the subsequent 2 repetitions. Another sample was taken from the soil for the determination of the loss moisture after 5 days with normal irrigation. That procedure was repeated 10 and 15 days later, with a selected repetition for renewal of irrigation. The soil samples were taken at a depth of 5 and 10 cm, covering a period between the 14^thand 29^thof April of 2014.

On day 80 of the experiment, data was gathered from the surviving plants and their parameters of height and stem diameter, for each experimental unit.

At the end of the harvest, the dry material of the aerial part of the plants was calculated by the gravimetric method, using a drying oven at 70 °C until reaching the constant weight; the soil moisture was analyzed at depths of 5-10 cm, 10-20 cm and 20-30 cm per each treatment. At the middle of the drought period induced on the plants, the environmental parameters of: temperature, humidity (hygrometer traceable™), solar radiation (Luxmeter HI97500, HANNA) and soil temperature were measured, during 24 hours.

Statistical Analysis

From the soil humidity percentage data during the induced drought period, taken at 0, 5, 10 and 15 days, the slope model of moisture loss versus time, was conducted by linear regression, and subsequently adjusted to a binomial method. The purpose of the procedure was to reconstruct the behavior of the moisture retention curves of each treatment in field. The data obtained was analyzed using two-way ANOVA, a pre-test of homogeneity of variance. The averages of the treatments were compared by the Tukey's test at a level of significance of 0.05.⁹The data was processed via the statistical software of Statgraphics.¹⁰

Results

Moisture Retention in Induced Drought

The record of the soil’s holding capacity of moisture of tested treatments is shown in Figure 2 and Figure 3. Said figures distinguish moisture to a depth of between 5 and 10 cm, in which all responded similarly.

Figure 2: Relative values of moisture retention of each treatment tested in field during 15 days after an irrigation. Click here to View figure

Figure 3: Relative values of moisture retention of the treatment tested in field with hydrogel, during 15 days after an irrigation. Click here to View figure

Humidity retention at the end of the experiment

图4是一个表示的内容f final moisture during a testing period, into depths of 5-10, 10-20 and 20-30 cm, according to the applied treatment. The treatment which contained the highest percentage of moisture at a depth of 5-10 cm, as well as from 10-20 cm, corresponds to the Amaranth stubble with hydrogel (H-AR). On the other hand, at a depth of 20-30 cm, the compost, the corn crop residue, the organic padding and the hydrogel/manure mixture demonstrated the highest moisture content.

Figure 4: Relative values of water content at different depth ranges according to the treatments evaluated Click here to View figure

Drought induced effects on vegetative development

The use of hydrogel demonstrated significant differences (F (1,66)=4.22,p<0.04) on the survival of plants, especially when it was present in greater quantities in the treatments (Table 4). The presence of hydrogel seems to have no effect on the variables of stem diameter and plant height, F (1,66)=3.59, p<0.06 and F (1,66)=3.19, p<0.07, respectively.

Table 4: Effects of treatments on the variables: number of surviving plants, stem diameter and plant height.

Factor	Number of surviving plants		Stem diameter (cm)		Plant height (cm)
Hydrogel
With hydrogel	6.4 ±0.1	a	n.s.		n.s.
Without hydrogel	6.7 ±0.1	b	n.s.		n.s.
Organic material
CM	6.3 ±0.2	ab	19.4 ±0.7	abc	61.7 ±2.5	ab
MR	6.7 ±0.2	b	22.3 ±0.7	cd	69.2 ±2.5	bc
AR	7.9 ±0.2	c	20.0 ±0.7	abc	62.0 ±2.5	ab
OM	6.6 ±0.2	b	23.0 ±0.7	d	73.1 ±2.5	c
GM	5.7 ±0.2	a	19.0 ±0.7	ab	61.2 ±2.5	ab
GA	6.8 ±0.2	b	22.0 ±0.7	bcd	66.9 ±2.5	abc
C	6.3 ±0.2	ab	18.9 ±0.7	a	58.6 ±2.5	a
Drought-induced
0 days	6.9 ±0.2	b	22.7 ±0.6	c	70.9 ±2.0	b
5 days	6.6 ±0.2	ab	21.4 ±0.6	bc	71.5 ±2.0	b
10 days	6.6 ±0.1	ab	19.8 ±0.6	ab	60.9 ±1.9	a
15 days	6.3 ±0.1	a	18.6 ±0.4	a	55.5 ±1.5	a

Results in the same row with the same superscript were not significantly different (p < 0.05). n.s = no significant differences.

Differences in the variables were found depending upon the type of organic amendment employed: survival of the plants (F (6,66)=13.07,p<0.0), height (F (6,66)= 4.33,p<0.0) and stem diameter (F (6,66)= 12.2,p<0.0). In the case of the number of plants, the residues of Amaranth show the greatest number of plants per experimental unit, while the treatments with organic padding, green fertilizer (Medicago sativa) and the corn residue, demonstrate favorable results concerning stem diameter and plant height.

Table 4 shows a decrease in the development and growth of the Amaranth plants during a longer drought period. The lack of irrigation during 5 days, affects 6% of stem growth; 10 days, 13% and 15 days, 18% respectively. While the height of the Amaranth plant does not present any adverse effects at the 5-day drought point, the negative effects reach 14% and 22% at the 10- and 15-day drought points, respectively. It is important to highlight that in the field, some plants which were subject to the 15-day drought period were not able to recover their acceptable vegetative condition in order to harvest their leaves.

It is worth noting that the interaction of the hydrogel with the type of organic amendment has a significant favorable effect on the survival of the plants (F (6,66) = 3.18, p<0.0). This is also the case for the interaction of the organic amendment with the drought periods (days): plant survival (F (18,66)= 5.02, p<0.0), height (F (18,66)=4.09, p<0.0) and stem diameter (F (18,66)= 2.15, p<0.0).

The results of the variables of total dry matter are shown in Table 5. Significant statistical differences were obtained between the various periods of drought (F (3,18)=4.68, p<0.01).The treatments applied with compost, manure and the control have the lowest weight of total dry matter. The lack of water on crops causes effects on the plants. It can be observed how a mayor hydric stress on the plants diminished the production of dry matter. The average quantity of the dry matter for the units which did not experience drought throughout the crop cycle was 1.0 ±0.07 kg, while that the plants which are denied irrigation for 15 days demonstrate an average of 0.6 ±0.07.1 kg.

Table 5: Total dry matter according to periods of drought-induced

Period of drought-induced (days)	Total dry matter (Kg)
0	1.0 ±0.07	b
5	0.9 ±0.07	ab
10	0.8 ±0.07	ab
15	0.6 ±0.07	a

Results in the same row with the same superscript were not significantly different (p < 0.05).

Likewise, the type of organic amendment had a significant effect on the production of the dry matter (F (6,18)= 7.82, p<0.0). Adding the corn stubble to the treatment increased production of dry matter (1.3±0.1) and the control which presents the lowest production (0.52±0.1)

Discussion

According to the moisture retention curves performed in the laboratory, the residues of Amaranth and green alfalfa are the most promising amendments for the support of growing plants, even 5 times greater than compost. During the observation of the ranges of available moisture (amount of water between FC and WP), the greatest values are (in order of importance): Amaranth residues (154.3%), corn residues (121%) and green alfalfa (110.4%); whereas the lowest are: manure (39.4%), compost (18.1%) and lastly, the soil alone or the control (10.9%).

A variety of records have mentioned that organic amendments decrease apparent density, increase porosity and promote aggregate formation.¹¹These effects in turn possess positive repercussions on moisture retention. No convincing effects are derived from this experiment relative to soil moisture retention with the application of the organic amendments. This lack of favorable effects could possibly be caused by a pre-existing positive response for the 4.9 % of OM which is contained in the soil, i.e. 327 Kg of OM m^-2and 30 cm of depth of the aerated soil layer, when the applications only reaching 4.5 Kg m^-2, 1.4% more, but without achieving its incorporation into the soil due that the amendments, with the exception of the compost and the manure, which were similar to crop residue. Also, Barzegar does not report changes in the content of soil moisture at lower potentials (<100 KPa), according to the rate and type of organic matter.⁷

Regarding the dosage, Gonzálezet al.[12] a large percentage of soil moisture is obtained with a treatment of 60 t ha^-1of manure (65% of humidity), significantly surpassing chemical fertilizer (58.29%) and the control (53.76%). López
et al.,³found that the application of 40 t ha^-1and 60 t ha^-1of bovine manure was the treatment which most retains and preserves the moisture throughout time. Similar results were reported by Salazaret al.,.¹³One study conducted in México with pepper (Capsicum annuumL.), using three doses of compost as a treatment concludes that the higher the amount of compost, the lower the level of evapotranspiration. This conclusion coincides with the greater moisture retention capacity of the different treatments¹⁴It is worth mentioning that the dosage used in the present experiment (45 t h^-1) could result barely sustainable, principally because a dry zone does not contain abundant quantities of organic materials.

水凝胶的积极影响使用的plant survival and growth of the plants has been reported in various studies.^15-17However, the experiment in field did not report significant statistical differences regarding the moisture content of the soil. This result could be due to the depth of the sampling, which was always around midday.

The effects on the plants are evident during the vegetative development of the amaranth, on the variables of the plants’ height and stem diameter. This coincides with Esqueda, who found that the sequence with higher levels of moisture presents the greatest percentage of emergence and survival in different types of grains in three types of soils.¹⁸In this case, crop residue could be considered as the best amendments, especially corn, which functions both mixed with the soil - corn stubble (MR) and with organic mulch (OM). Nevertheless, this effect is noteworthy because it also can be related to the soil buffer capacity of pH of 7.8, whereas the corn residue’s pH of 4.8 would favor better nutrient absorption from the soil and would permit an increase in plant growth.

Although Amaranth is considered to be a drought tolerant species, an acceptable limit of lack of moisture must be present. The optimal thermal conditions are from16 to 24 °C and between 800 and 1200 mm of rain precipitation.¹⁹In the study site, the daily fluctuations provide real information of the environment and the soil plant growth due to higher temperatures and lower than recommended precipitation levels. Figure 5 shows the variations of those parameters mentioned during 24 hours, registered at the midpoint of the induced drought period. The maximum ambient temperature was 42.7 °C, at 16:30 hours, whereas the obtained values from the soil between 10 and 15 cm of depth reached a maximum of 32.3°C, between 17:30 and 20:30 hours. The heating process of the environment and the soil was caused by at least 3 previous hours of sunlight, whose maximum radiation level was at 13:30 hours (Figure 6). Although variations of soil temperature (23.83 - 32.33 °C) exist, this medium continues to act as a buffer for the plant roots.

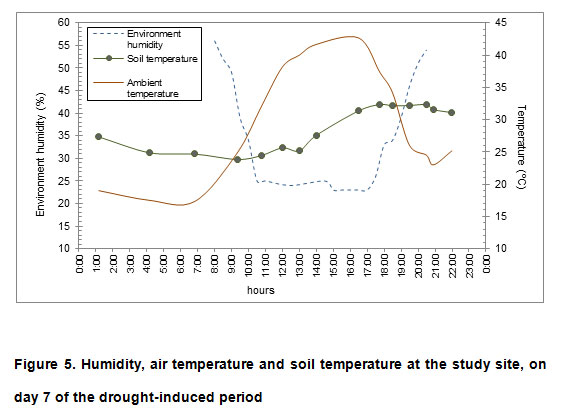

Figure 5: Humidity, air temperature and soil temperature at the study site, on day 7 of the drought-induced period Click here to View figure

Figure 6: Variation of solar radiation throughout day 7 of the drought-induced period Click here to View figure

With the measurements of the temperature and humidity, the study site could be considered as a hostile environment for the Amaranth plants, because it suppresses the effects of moisture retention, particularly within the first 10 to 15 cm of depth, despite the rich texture of the site’s soil that could favor moisture retention. Nevertheless, local agriculturalists still prefer to plant this species due to the reality that other plant species can scarcely survive nor thrive there. In addition, these farmers are only able to implement auxiliary irrigation techniques due to the limited availability of water in the region.

Conclusion

The application of hydrogel increases the post transplanting survival of the amaranth plants by 4.48%. The application of organic amendments improves plant survival up to 10.3%; 23.21% stem diameter and 25.79% plant height compared to soil without any application (control).

A 5-day drought affects 6% of stem growth of the Amaranth plant; 10 days, 13%; and 15 days, 18%; respectively. Plant height, in a 5-day drought, is not affected considerably, but after 10 days (14%) and 15 days (22%).
